HCFA-1500 Box 32b - Other ID

On the HCFA-1500 form, Box 32b is used to report the Service Facility Secondary (legacy) Identification when required by a payer. This is the companion to Box 32a (NPI). Only populate Box 32b if the payer explicitly requests a non-NPI identifier for the service facility.

Tip: Most payers accept the service facility NPI in Box 32a and do not require a legacy ID in Box 32b. If a legacy ID is required, include the correct qualifier followed by the ID number.

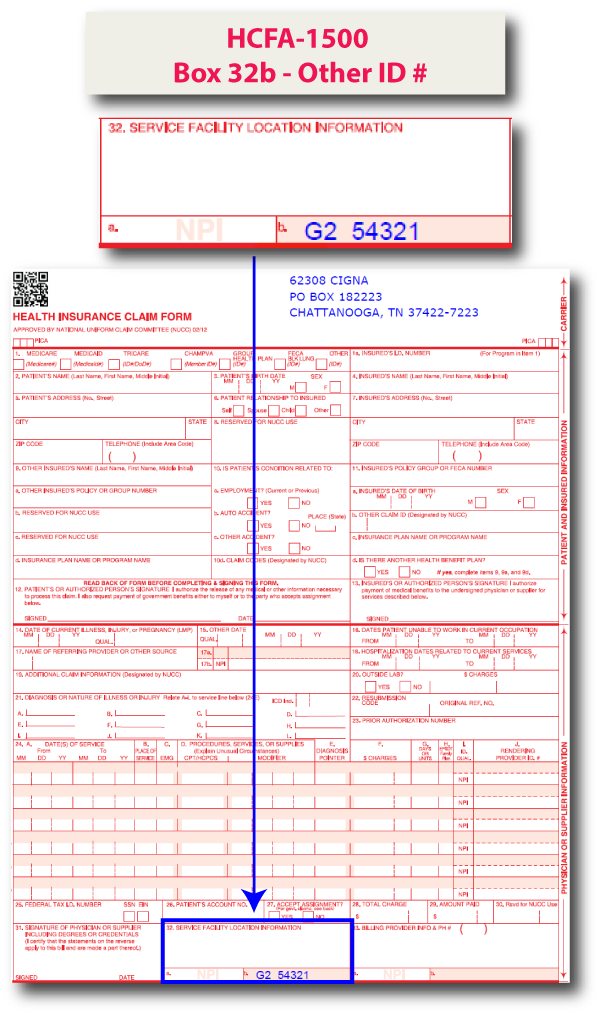

In our example below, the facility reported qualifier G2 with ID 54321.

In the X12 837P 5010 transaction, Box 32b maps to the 2310C Service Facility Location Loop in the REF segment:

• REF01 – Reference Identification Qualifier
• REF02 – Service Facility Secondary Identification Number

Common REF01 Qualifiers for Box 32b

• 0B – State License Number
• G2 – Provider Commercial Number
• LU – Location Number

Sample 837P (5010) – Box 32b Mapping

Note: Use Box 32b only when a payer requests a specific legacy identifier for the service facility. Otherwise, report the facility’s NPI in Box 32a and leave Box 32b blank.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
