HCFA-1500 Box 24i - Rendering Provider ID Qualifier

On the HCFA-1500 form, Box 24I is used to report the Rendering Provider Secondary Identification when required by the payer. While most providers now use their NPI in Box 24J, some payers (especially Medicaid or certain commercial carriers) may still require a legacy ID such as a Medicaid provider number.

Tip: Use this box only if the payer requires a secondary (legacy) ID. In most cases, entering the NPI in Box 24J is sufficient and Box 24I may be left blank.

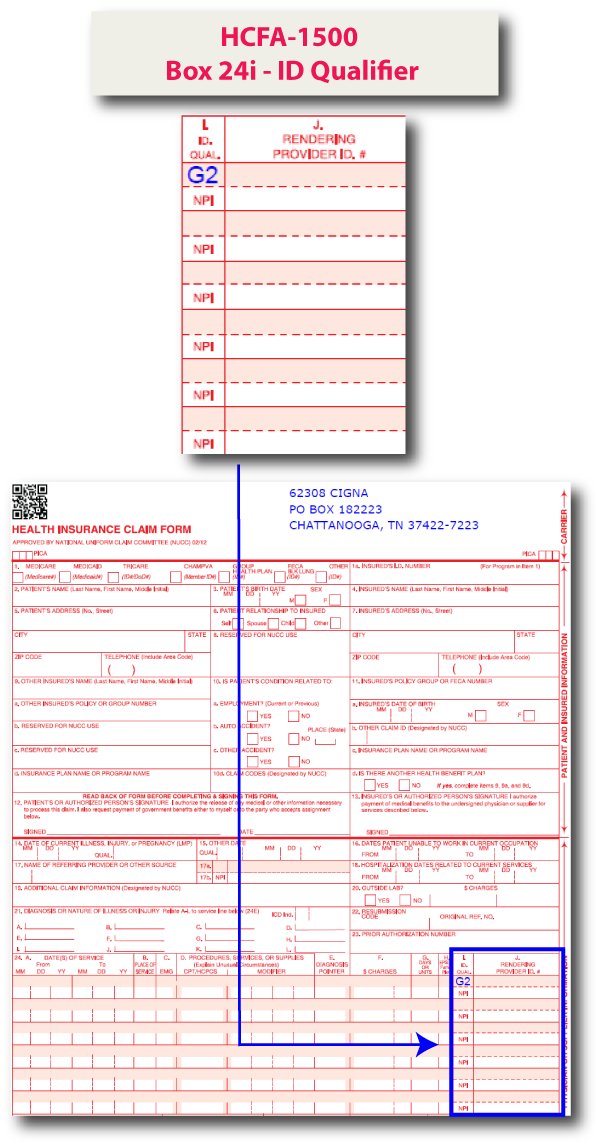

In our example below, the provider reported a qualifier of G2 on the service line.

In the X12 837P 5010 transaction, Box 24I maps to the Rendering Provider Secondary Identification in one of two places:

• 2310B REF – Rendering Provider Secondary Identification (claim-level)
• 2420A REF – Rendering Provider Secondary Identification (service line–level)

Valid Qualifiers for Box 24I

• 0B – State License Number
• 1G – Provider UPIN Number
• G2 – Provider Commercial Number
• LU – Location Number

Sample 837P (5010) – Box 24I Mapping

Segment Breakdown:

• REF01: Qualifier identifying the type of secondary ID (e.g., G2 = Provider Commercial Number)
• REF02: The actual secondary identification number assigned by the payer

Note: Providers should only report a secondary ID in Box 24I when explicitly required by the payer. The 2310B REF is used at the claim level, while the 2420A REF is used when a service line requires a different secondary ID than the claim-level ID. In most modern billing, the NPI reported in Box 24J is sufficient and Box 24I can remain blank.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
