HCFA-1500 Box 24h - EPSDT/Family Plan

On the HCFA-1500 form, Box 24H is labeled “EPSDT/Family Plan” and is used to indicate whether the service line is related to the Early and Periodic Screening, Diagnostic, and Treatment (EPSDT) program, or to a family planning service. This box is primarily required for Medicaid claims.

Tip: Use Y (Yes) if the service is related to EPSDT or Family Planning, and leave blank (or use N, depending on payer requirements) if not applicable. Always confirm payer-specific instructions before populating this field.

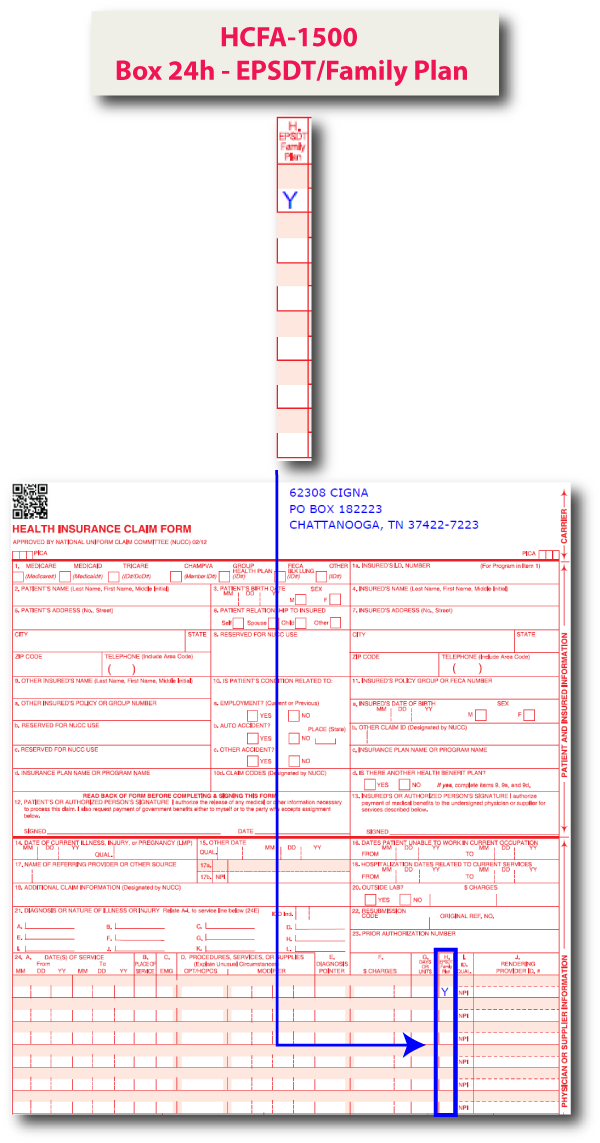

In our example below, the provider reported Y to indicate that the service line is related to an EPSDT/Family Plan service.

In the X12 837P 5010 transaction, the Box 24H indicator maps to SV111 (EPSDT) and/or SV112 (Family Planning) in the 2400 Service Line Loop. Depending on the service, one or both of these elements may be populated.

Sample 837P (5010) – Box 24H Mapping

Segment Breakdown (focus on EPSDT/Family Plan):

• SV101–SV107: Core procedure, charge, unit, and diagnosis pointer data (as explained in prior boxes).
• SV111: EPSDT Indicator (Y if the service is related to EPSDT).
• SV112: Family Planning Indicator (Y if the service is family planning-related, blank otherwise).

Note: Box 24H is rarely used outside of Medicaid claims. Report only when required, as unnecessary population may delay or deny payment. EPSDT and family planning designations must follow state Medicaid program rules.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
