HCFA-1500 Box 24g - Days or Units

On the HCFA-1500 form, Box 24G is labeled “Days or Units” and is used to report the number of services, sessions, or units rendered for the procedure listed in Box 24D. This allows providers to indicate when more than one of the same service was performed on the same date.

Tip: For most professional services this value will be 1, but procedures such as physical therapy sessions, injections, laboratory tests, or anesthesia may require higher or fractional counts (e.g., 0.5 for half a unit).

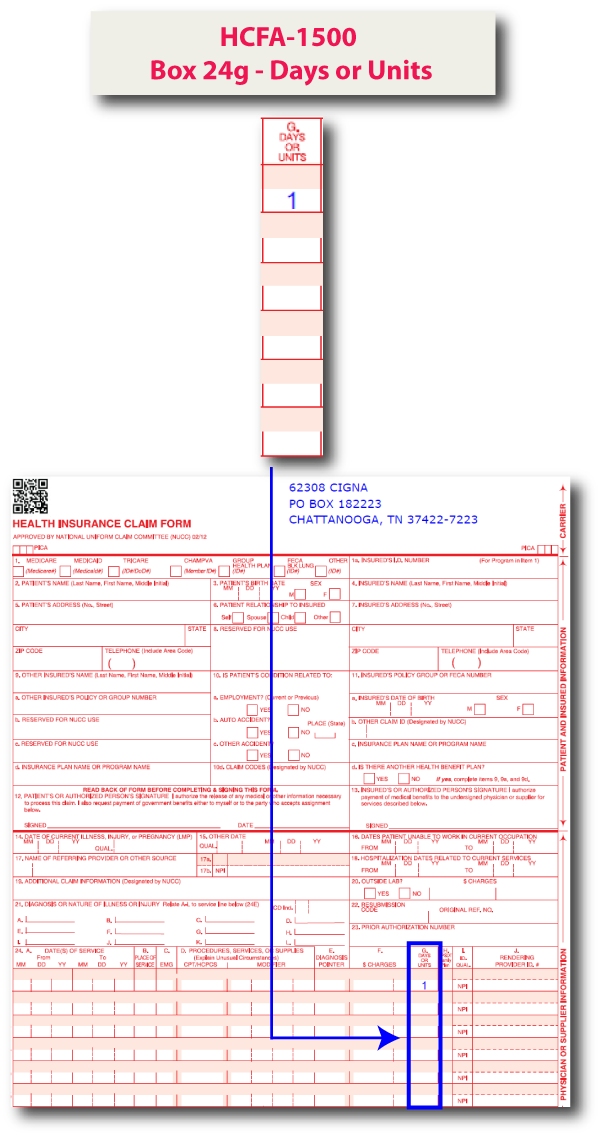

In our example below, the provider reported 1 unit for the service line.

In the X12 837P 5010 transaction, the Box 24G value maps to SV104 in the 2400 Service Line Loop.

Sample 837P (5010) – Box 24G Mapping

Segment Breakdown (focus on units):

• SV101: Procedure code (+ optional modifiers), e.g., HC:98940:25
• SV102: Line item charge amount (e.g., 150)
• SV103: Unit/Basis for Measurement Code (e.g., UN = Unit)
• SV104: Quantity or Units (e.g., 1). This represents the number of services, days, or units performed.
• SV107: Composite Diagnosis Code Pointer (e.g., 1)

Note: Ensure Box 24G/SV104 reflects the exact number of services performed. Incorrect unit reporting may cause claim denials or incorrect reimbursement. Some payers also allow fractional units depending on the service type (e.g., infusion therapy, anesthesia). Always follow payer-specific guidelines.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
