HCFA-1500 Box 24e - Diagnosis Pointer

On the HCFA-1500 form, Box 24E is labeled “Diagnosis Pointer” and is used to indicate which diagnosis code(s) from Box 21 apply to a specific service line. Rather than re-entering full ICD-10 codes, providers enter the letter(s) (A–L) that correspond to the listed diagnoses.

Tip: Only use the letters (A–L) from Box 21 on the paper claim. Multiple letters may be entered if more than one diagnosis supports the service line. In the electronic X12 837 transaction, these letters are converted to numbers (1–12) that correspond to the sequence of diagnosis codes reported.

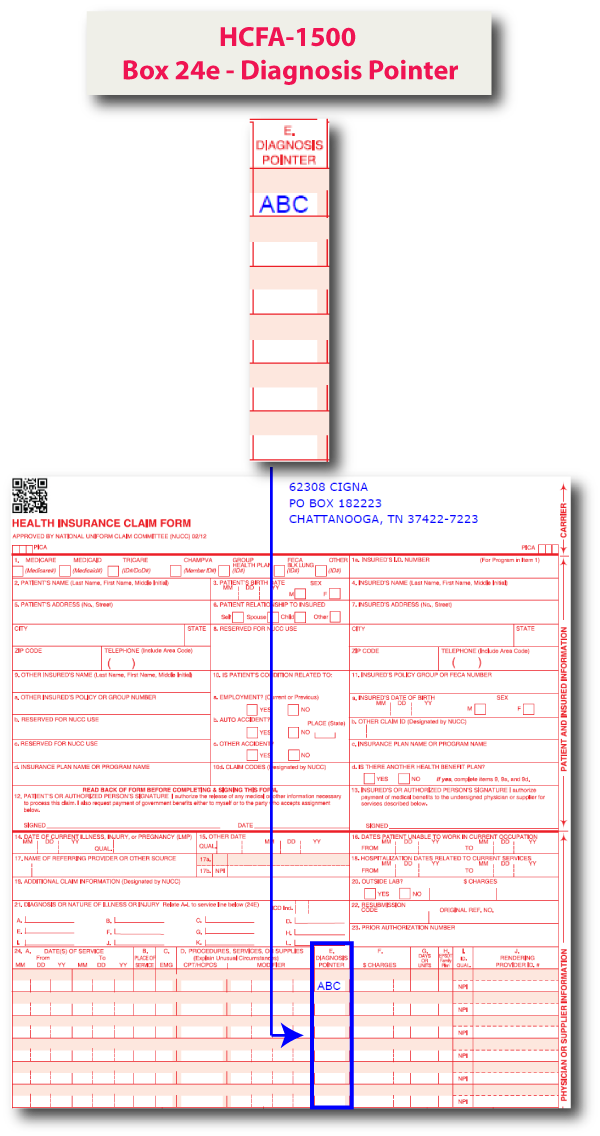

In our example below, the provider pointed to diagnoses A, B, and C in Box 21 to support the first service line. On the paper claim this would appear as “ABC.” In the electronic claim, this is represented as “1:2:3”

In the X12 837P 5010 transaction, Box 24E data maps to the following:

• SV107 – Diagnosis code pointer(s) at the service line level (2400 Service Line Loop).

Sample 837P (5010) – Box 24E Mapping

Segment Breakdown:

• SV107: Diagnosis pointer(s) referencing the diagnosis codes in Box 21.
  • The first pointer designates the primary diagnosis for this service line.
  • Any additional pointers indicate supporting diagnoses in declining order of importance.
  • Acceptable values are 1 through 12, which correspond directly to Composite Data Elements 01 through 12 in the Health Care Diagnosis Code (HI) segment of the Claim Loop (2300).

Note: Do not enter ICD-10 codes directly into Box 24E. Use only diagnosis pointers—letters (A–L) on the paper form or numbers (1–12) in the electronic 837 transaction—that reference the diagnosis codes listed in Box 21.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
