HCFA-1500 Box 24c - EMG

On the HCFA-1500 form, Box 24C is labeled “EMG” and is used to indicate whether a particular service line was performed as an emergency.

Tip: This box is not often used. Only populate it with Y (Yes) when the service was performed in an emergency situation. If not, leave it blank—do not enter N or any other value.

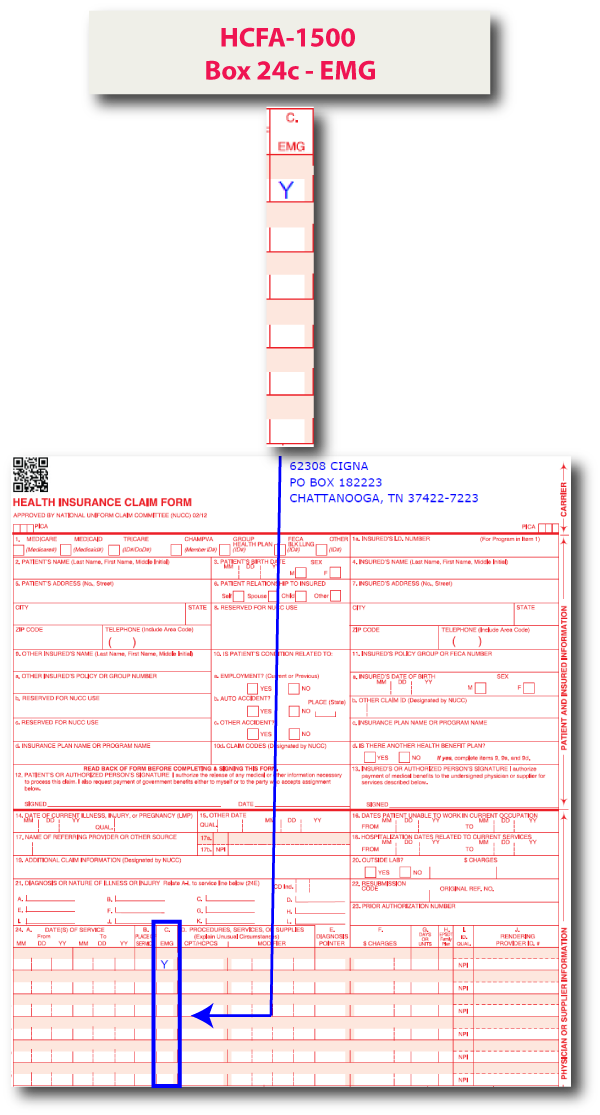

In our example below, the provider reported an emergency service with a value of Y for the first service line.

In the X12 837P 5010 transaction, Box 24C data maps to the following:

• SV109 – Emergency indicator at the service line level (2400 Service Line Loop).

Sample 837P (5010) – Box 24C Mapping

Segment Breakdown:

• SV109: Emergency indicator (Y = Yes, emergency service). Leave blank if not applicable.

Note: Box 24C is rarely used. Only populate when the service line qualifies as an emergency. If it is not an emergency, leave the field empty—do not enter “N”.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
