HCFA-1500 Box 23 - Prior Authorization Number

On the HCFA-1500 form, Box 23 is used to report additional claim identifiers required by certain payers. This can include prior authorization numbers, referral numbers, CLIA numbers, or other certification identifiers.

Tip: Always confirm the payer’s requirements for Box 23. Some payers may require a prior authorization number, while others may use this field for CLIA or mammography certification numbers.

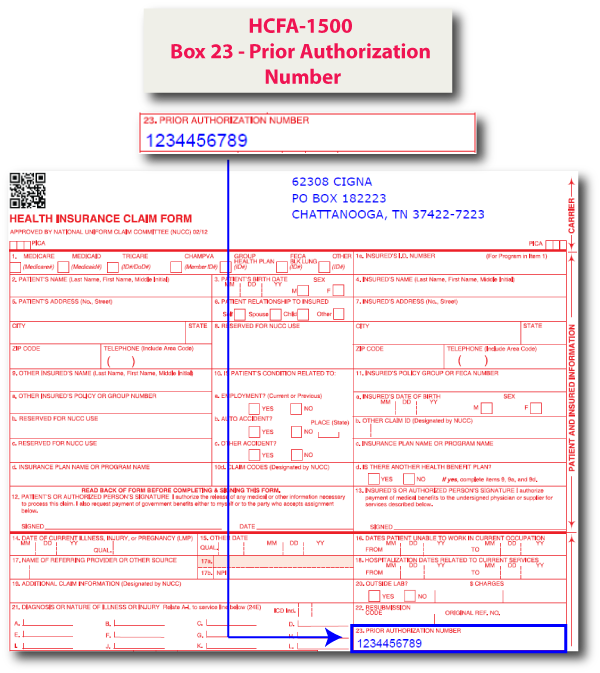

In our example below, the provider reported a prior authorization number of 1234456789.

In the X12 837P 5010 transaction, Box 23 maps to the REF segment in the 2300 Claim Information Loop, with the REF01 element indicating the type of identifier and REF02 containing the number itself.

Common REF Qualifiers for Box 23

• G1 – Prior Authorization Number (REF*G1*)
• 9F – Referral Number (REF*9F*)
• X4 – Clinical Laboratory Improvement Amendment (CLIA) Number (REF*X4*)
• EW – Mammography Certification Number (REF*EW*)

Sample 837P (5010) – Box 23 Mapping

Segment Breakdown:

• REF01: Qualifier indicating the type of number (e.g., G1 for prior authorization)
• REF02: The actual number or identifier (e.g., 1234456789)

Note: Box 23 should only contain one number. If multiple identifiers are required, they should be sent in their appropriate EDI segments per payer specifications.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
