HCFA-1500 Box 20 - Outside Lab Charges

On the HCFA-1500 form, Box 20 is used to indicate whether laboratory work was performed by an outside laboratory. If the box is checked “Yes,” the provider must also include the total charge for the lab work.

Tip: If the provider performed the lab work in-house, select “No.” If an outside laboratory was used, check “Yes” and report the associated charge.

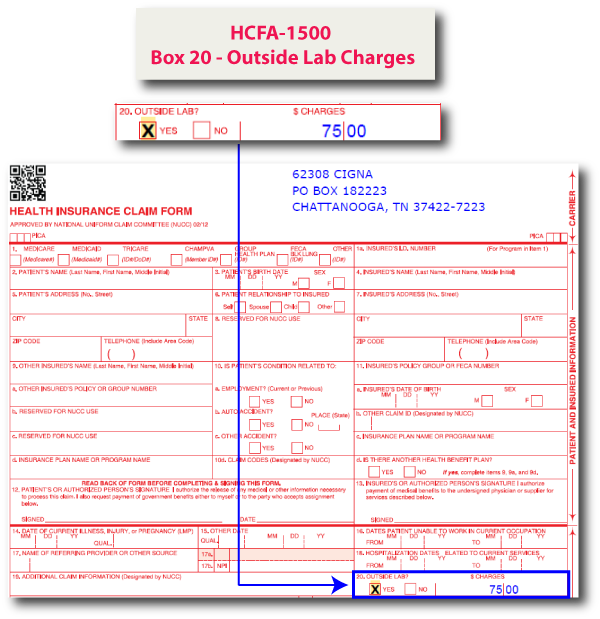

In our example below, the provider checked “Yes” and reported an amount of $75.00.

In the X12 837P 5010 transaction, Box 20 maps to the PS1 segment within the 2400 Service Line Loop. This segment is used to report the identification of the provider that performed the purchased service (e.g., the lab), along with the total charge amount.

Sample 837P (5010) – 2400 PS1 Segment

Segment Breakdown:

• PS101: The Purchased Service Provider Identifier – typically the NPI or other ID of the lab or external provider that performed the service.
• PS102: The charge amount for the outside lab service (e.g., 75).

Note: The PS1 segment is only required when Box 20 is marked “Yes.” If no outside lab was used, do not include the PS1 segment in the 837P transaction.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
