HCFA-1500 Box 17b - NPI

On the HCFA-1500 form, Box 17b is used to report the referring, ordering, or supervising provider’s National Provider Identifier (NPI). This is a 10-digit, federally assigned number that uniquely identifies healthcare providers in HIPAA transactions.

Tip: Enter only the provider’s NPI in Box 17b—no qualifier is used here. This field should always contain a valid NPI when applicable.

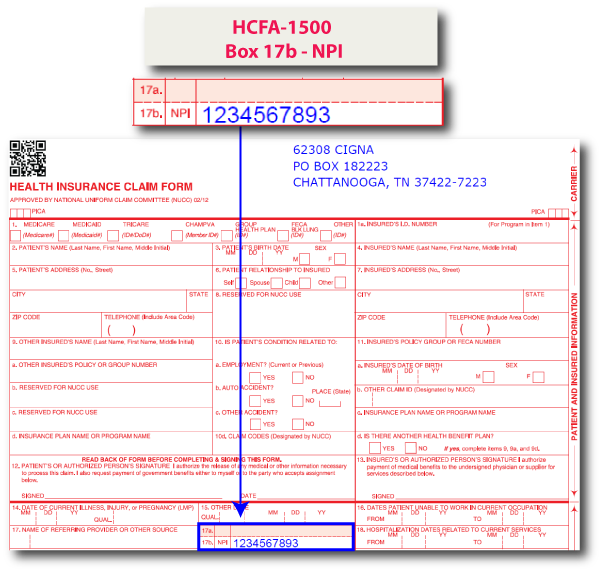

In our example below, we entered '1234567893' as the referring provider's NPI.

In the X12 837 electronic claim, the NPI appears in the NM109 data element within the NM1 segment of the appropriate provider loop.

• 2310A – Referring Provider
• 2420E – Ordering Provider
• 2310D – Supervising Provider

Key X12 837 Details:
  • NM108: ID Qualifier (XX for NPI)
  • NM109: 10-digit NPI number (e.g., 1234567893)

Sample 837P (5010/4010) – 2310A Referring Provider

Note: Box 17b should always be completed with a valid 10-digit NPI when reporting a provider in Box 17. This ensures proper identification and routing of claims.

Important: All HIPAA-covered entities must use NPIs in electronic transactions. Be sure the NPI reported in Box 17b matches the provider role indicated in Box 17.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
