HCFA-1500 Box 16 - Dates Patient Unable to Work in Current Occupation

On the HCFA-1500 form, Box 16 is used to report the dates during which the patient was unable to work in their current occupation due to illness or injury. If the patient is employed and unable to work, enter the date(s) reflecting that absence. An entry in this field may suggest that employment-related insurance coverage, such as Workers’ Compensation or employer disability benefits, could apply.

Tip: Enter the dates in MMDDYYYY format. If both a start and end date are known, include them. Otherwise, supply only the date that applies based on the patient's current disability status.

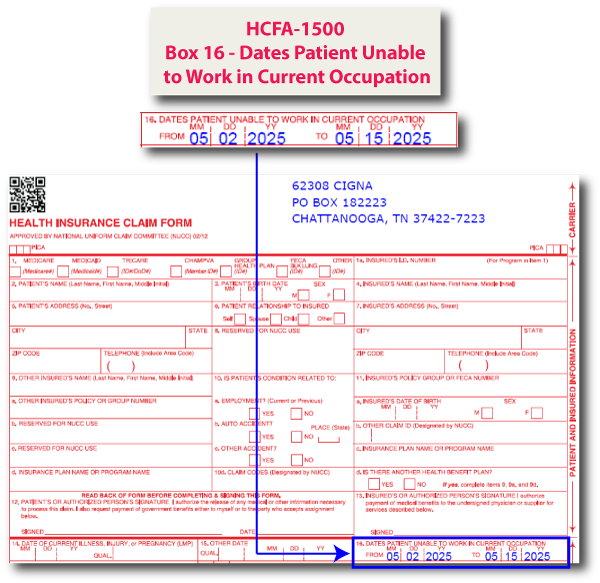

In our example below, we entered '05/02/2025' as the start date and '05/15/2025' as the end date.

In the X12 837 transaction, Box 16 maps to one of several DTP segments in the 2300 Claim Information Loop, depending on whether one or both dates are known:

• DTP*314 – Use when both start and end dates of disability are known. This segment uses format RD8 to represent a date range.
• DTP*360 – Use if the patient is currently disabled and only the start date is known.
• DTP*361 – Use if the patient is no longer disabled and only the end date is known.

Key X12 837 Details:
  • DTP01: Date Qualifier (314, 360, or 361)
  • DTP02: Date Format Qualifier (RD8 for ranges, D8 for single dates)
  • DTP03: Date or Date Range Value (e.g., 20250502-20250515)

Sample 837P (5010/4010) – 2300 Claim Information

Note: Use DTP*314 with RD8 format when both dates are available. Use DTP*360 (start only) or DTP*361 (end only) if only one date is known. These segments appear in Loop 2300 of the 837 transaction.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
