HCFA-1500 Box 13 - Insured's or Authorized Person's Signature

On the HCFA-1500 form, Box 13 is used to capture the insured’s or authorized person’s signature, authorizing the payment of medical benefits directly to the provider. This is known as the assignment of benefits and is a standard part of claim processing.

Tip: This box is typically completed with the phrase “SIGNATURE ON FILE”. This indicates that the insured has signed an authorization statement that is kept on file with the provider’s office.

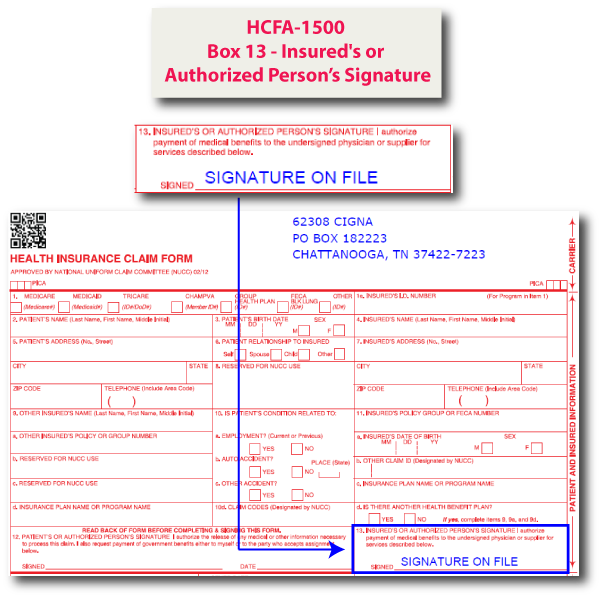

In our example below, Box 13 is filled in with “SIGNATURE ON FILE”.

So far, we've discussed how the assignment of benefits is indicated on the HCFA-1500 form. Now let’s look at how this information is reflected in the X12 837 electronic format.

In the X12 837 transaction, Box 13 maps to the CLM08 element in the 2300 Claim Information Loop. This field is known as the Benefits Assignment Certification Indicator and specifies whether the provider accepts assignment of benefits.

Key X12 837 Details:
  • CLM08: Benefits Assignment Certification Indicator
  • Allowed values: Y (Yes – provider accepts assignment), N (No), W (Not Applicable or patient refuses to assign benefits)
  • For Box 13 with “SIGNATURE ON FILE”, use Y

Sample 837P (5010/4010) – 2300 Claim Information

Note: Box 13 maps to CLM08 in the 837 transaction. A value of Y indicates the insured has authorized payment to the provider. The value N is rarely used in electronic claims, and W may be used in special cases.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
