HCFA-1500 Box 11b - Other Claim ID

On the HCFA-1500 form, Box 11b is designated for the “Other Claim ID.” This field is typically used to report a claim number assigned by a payer such as Workers’ Compensation or other liability insurers. It helps identify prior claims or associated cases.

Tip: If applicable, enter the prior claim ID assigned by the carrier, such as a Workers’ Compensation claim number. This field is often required when the claim is related to an accident or injury handled by another insurer.

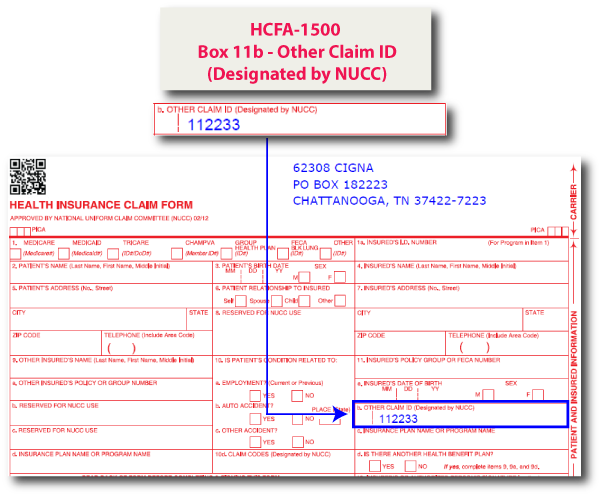

In our example below, we populated Box 11b with the ID '112233'.

Visual Note: Box 11b includes a vertical bar separator. When applicable, a two-character qualifier (such as “Y4”) may appear to the left of the bar, while the claim number itself is entered to the right. This format is commonly used by some payers to indicate the type of reference ID being provided.

So far, we've discussed how the Other Claim ID is captured on the HCFA-1500 form. Now let’s look at how this information is reported in the X12 837 electronic format.

In the X12 837 transaction, Box 11b maps to the REF segment in the 2010BA Subscriber Information Loop. The REF01 element identifies the reference type, and REF02 carries the Other Claim ID value.

The example below illustrates how Box 11b maps to the 837 5010 and 4010 formats, specifically within Loop 2010BA:

5010 & 4010 Versions:
  REF01 (Reference Identification Qualifier): 'Y4' for Agency Claim Number
  REF02 (Other Claim ID – for example, Workers’ Compensation or Property Casualty Claim Number): '112233'

Sample 837P (5010/4010) - 2010BA - Subscriber Demographic Information

Note: HCFA Box 11b maps to the REF segment in Loop 2010BA of the X12 837 format using qualifier Y4. This is most commonly used for Workers’ Compensation or other liability programs that assign a separate claim number.

For additional information on the X12 837 standard, please refer to the official implementation guides published by X12.
